Color ip camera Jovision JVS-933-KDL-PE
• Resolution 2304×[email protected]
• Light’s on when people come, light’s off when people leave
• Double wick, two white light, two infrared
• Support humanoid detection (Default does not mark the humanoid box)
• Built-in Microphone
• PoE
Color Ip Camera Jovision JVS-N933-K1-PE
Jovision JVS-N933-K1-PE IP camera accepts the optional feature and converting instantly to the IP address. H.265 / H.264 standard compression, 25fps frame rate, 256Kbps-8Mbps bit rate, support up to 8 areas, 10M / 100M Ethernet, 2 x streams, -20°C-60°C working temperature, 10%-90% Rh working humidity, plastic material, 100 x 92 x 100mm dimensions, 200g weight. Up to 13 users can use the camera. HTTP / TCP/IP / UDP / ICMP / RTSP / RTP / RTCP / SMTP / DHCP / DNS protocol support.
* * Contract wih us.: Click Here
| Model | JVS-N933-KDL-PE |
| Video | |
| Image Sensor | 1/2.9″ CMOS Sensor |
| Max. Resolution | 2304×1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.265/ H.264 |
| Framerate | 25fps |
| Bitrate | 204Kbps~5Mbps |
| SNR (dB) | 52dB |
| Min. Illumination | 0Lux (Fill light ON) |
| Lens | |
| Lens | 2.8mm, 4mm, 6mm (M12) |
| Fill Light | 2x Double wick filling lamp (Infrared/ Warm) |
| Fill Light Distance | Up to 30m. |
| Function | |
| Exposure Control | Auto |
| White Balance | Auto |
| Image Enhancement | 3D DNR |
| Advanced OSD | Support OSD large font function, OSD flashing on alarm, OSD and time to set the position separately |
| Motion Detection | Support human detection (Default does not mark the human box) |
| Image Setting | Rotate, Saturation, Brightness, Contrast, Sharpness |
| Day and Night Function | Day and night automatic switching |
| Privacy Mask | Support up 8 areas |
| Intelligent Analysis | Not Support |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and video, Image, Alarm,Network management |
| Audio | Built-in Microphone |
| Network | |
| Ethernet | 1x RJ45 10M / 100M Ethernet |
| Stream | 2x Streams |
| Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Interoperability | ONVIF 2.4 |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Power Supply | DC12V/2A |
| Power Consumption | <3W (During day); <6W (At night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Material | Plastic |
| Dimensions | 100x100x92mm |
| Weight | 170g |

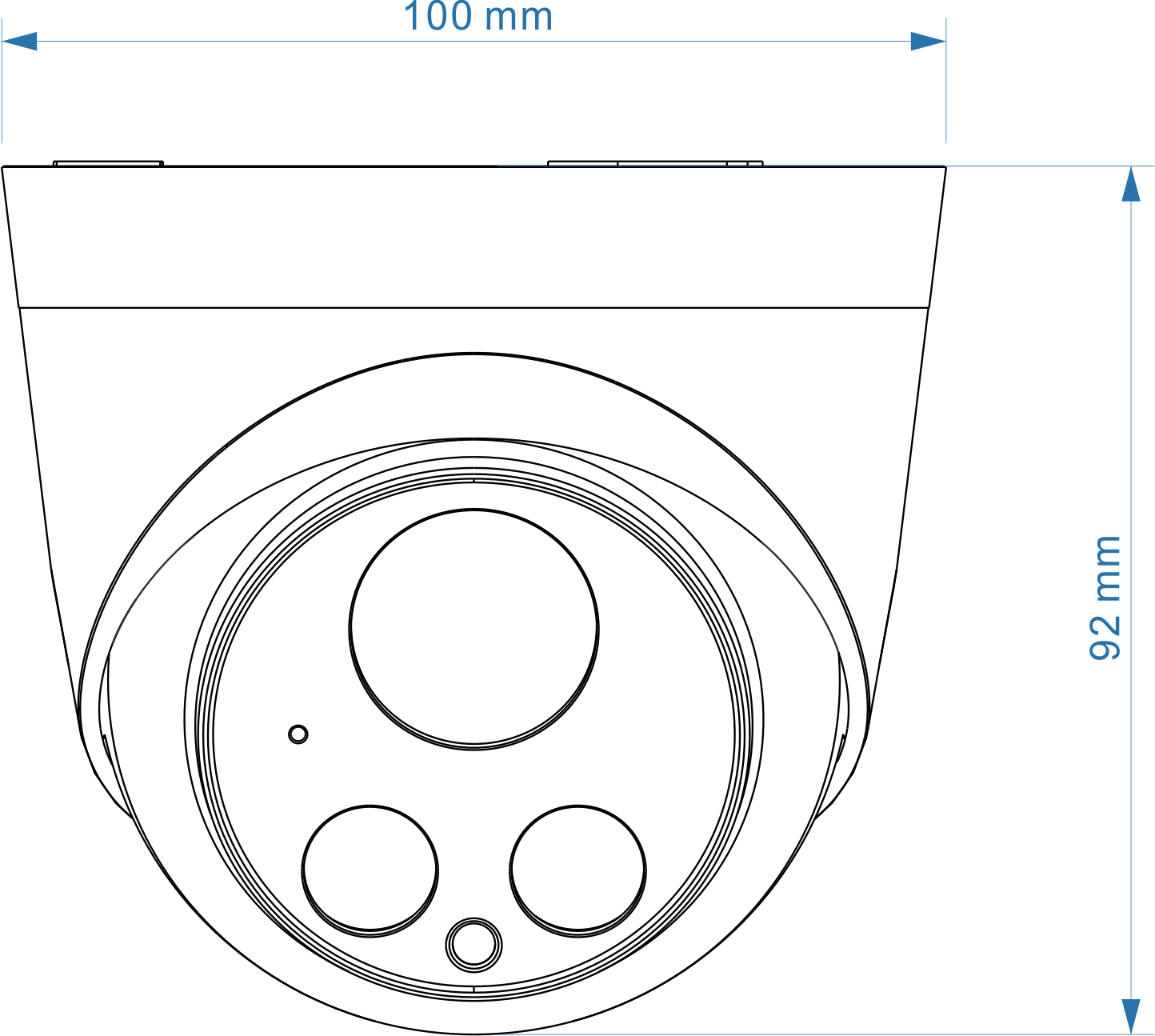

Dimension(mm)
